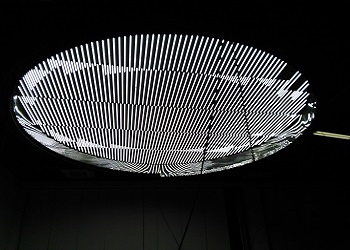

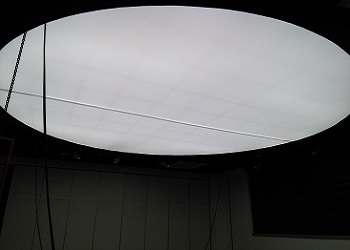

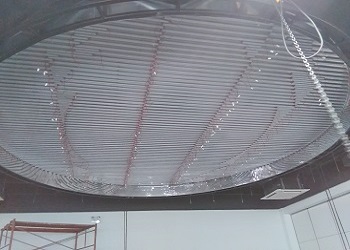

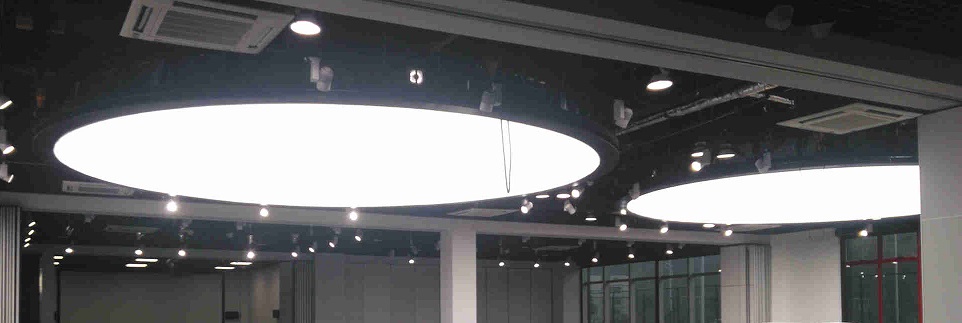

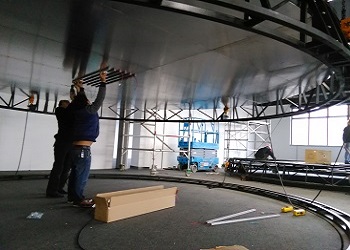

The standard light source system of the modelling and evaluation room independently designed, produced and installed by our company in the Changan Peugeot Citroen Automotive R&D Center has now been officially put into use, and its lamp disk product specifications currently rank first in the world record.
Product introduction:

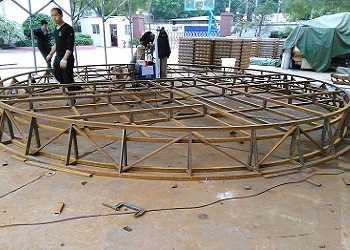

| Lamp disk frame structure | weight | 2500KG | Lamp disk Optical parameters | working voltage | AC220V |
| main material | square steel | LED source | Nichia LED | ||
steel frame finish | black spray | total power | 9000W | ||
| maximum diameter | 6.4M | batten light QTY | 330PCS | ||
| glow surface diameter | 6.0M | total flux | 500000LM | ||
| total height | 0.6M | vertical ground 3.5m average illumination | 3500LUX | ||
| supporting point installation QTY | 4pcs | CRI | 90Ra | ||
| bearing way | steel beam through wall | Average CCT | 6000K | ||
| inner membrane material | transparency PC | Driver | OSRAM | ||
| outer membrane material | fiberglass | control system | OSRAM DALI electrodeless control power | ||
| electric calabash QTY< /span> | 4pcs | ||||
| single electric calabash rated load | 2000KG | ||||
| single electric calabash power | 1.5KW | ||||
| Projected lifetime | LED | 5years | |||
| structure | 10years | ||||
| Warranty | LED | 2years | |||
| Driver | 2years | ||||
| structure | 5years | ||||
 |  |  | ||
 |  |  | ||
 |  |  |
