FEATURES
1, COMFORTABLE WIHTE LIGHT: 2000K candle color light design, provide a leisure lighting scene. 3 phases color temperature changing(2000K->3000K->4000K) by setting control panel.
2, EXCELLENT RGB ATMOSPHERE LIGHT: 16 million RGB colors, 4 color-changing modes or fixed single color light, effective to create romantic atmosphere.
3, RETRO KNOB DIMMING DESIGN: New stepless brightness dimming experience, color changing, setting the light you want through the Rotary Switch.
4, EYE HEALTHY CARE: Flicker free 3% and no glare.
5, MEMORY THE LAST MODE YOU SET:Memory so that it can remember the last mode (the last color or white light either power off or turn off the power button.
6, SET TIMER FOR YOUR CONVENIENCE: Short press the Timer button, the lamp will turn off automatically after 30 minutes.
TECHNICAL DETAILS
Types | Items | Parameter |
Electronics | Wattage | 5W |
Adapter Input | 100-240Vac 50/60Hz |
|
Adapter Output | 5VDC/ 1A |
|
Current ripple | Flicker free 3% |
|
Light Source | Luminous Flux/ Intensity | 350LM@4000K, Red:7.2cd, Green:12cd, Blue: 6.6cd |
CCT | 2000K-4000K |
|
Color Quantity | 16 million colors |
|
CRI | Ra>80, Ra>90@2000K |
|
LED | 2000K White LED:12PCS╳0.3W 4000K White LED:12PCS╳0.3W RGB LED: 12PCS╳0.12W |
|
Environmental requirement | IP Protection | IP20 |
Operation Temperature | -20℃~40℃/-4℉~104℉ |
|
Operation Humidity | 5RH~90RH |
|
Storage Temperature | -30℃~80℃/-22℉~176℉ |
|
Storage Humidity | 5RH~95RH |
|
Body | Base finish | Silver / Rose Gold |
Control panel finish | Grey/ White |
|
Weight | 1.35lb/ 610kg |
|
Lifetime | 30,000hours |
|
CERTIFICATION
Types | Standards | Coincidence Check | Status |
FCC SDOC | FCC Part15B | Pass | Authorized |
CE LVD | EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + A2: 2013 | Pass | / |
CE EMC | EN61547/EN61000-3-2/EN61000-3-3 | Pass | / |
OPERATION
● ON/OFF
Place the lamp on a flat surface. Attach the power adapter to the Type-C port on the lamp and insert the power adapter into a 120VAC household outlet. Short press the Power Button to turn on and off the lamp.

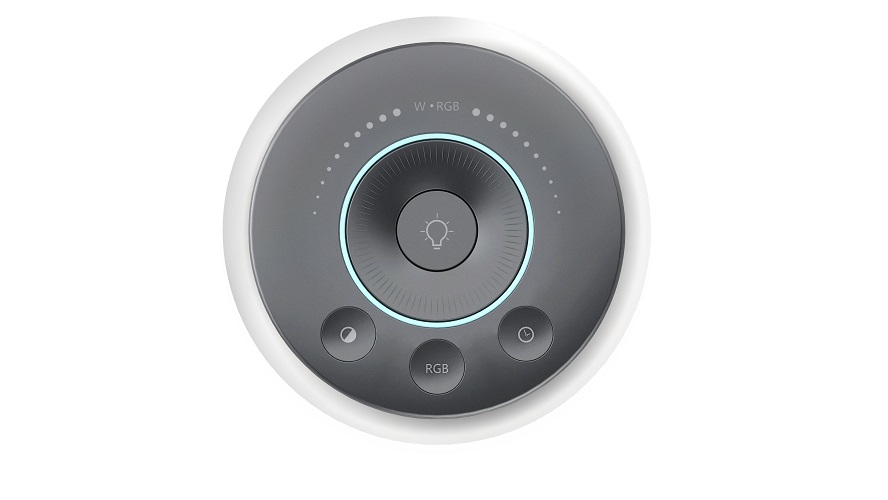

● Select Color Temperature and Adjust Brightness
Short press the Color Temperature Selection button repeatedly to cycle through 2000K->3000K->4000K. Through the Rotary Switch to precisely adjust brightness.
● Select Color-changing Mode and Color
Short press the RGB Selection button repeatedly to cycle through the 4 color-changing modes. Through the Rotary Switch to select the fixed color.
● Set the Timer
Short press the Timer button, the lamp will turn off automatically after 30 minutes.
NOTE: Changing any setting (brightness, color temperature, color) while the lamp is on will reset the timer.
DIMENSIONS BRAND
PACKAGE
Inner box size: | 132*132*265mm |
Outer carton size: | 545*280*555mm |
PCS per inner carton: | 1 |
PCS per outer carton | 16 |
N.W. per outer carton | 11.8 kg |
G.W. per outer carton | 13.3 kg |
LIMITED WARRANT
2-year limited warranty from original purchase date. To learn more about the Limited Warranty for LINKLITE products, please visit www.hensel-hk.com.
1. Home use: garden, patio, home bar, living room, bedroom, etc.
2. Party and events: birthday, dancing party, festival decoration, Christmas, music concert, wedding, company events.
3. Entertainment: bar, night club, KTV, Karaoke, disco, bistro, pub, salon, SPA, cabaret, etc.
4. Catering: hotel, restaurant, tea house, coffee shop, etc.
